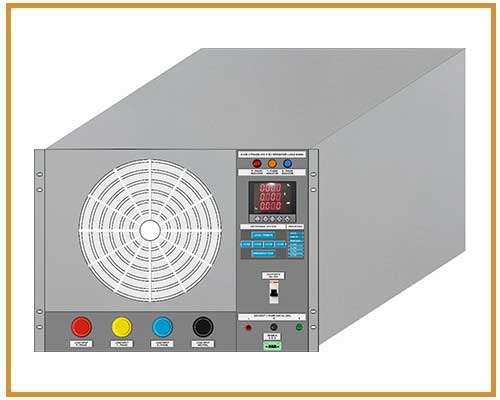

Load Bank for Data Centre Applications

These load banks are rack mounted and specially designed for Data Centre Applications. The load bank can be used for the evaluation of the Data Centre HVAC System. This load bank can be used for testing all other heavy duty power components which are part of the electrical distribution line of the Data center.

The range of load banks starts from 6KW to 20KW. The load input terminals and auxiliary terminals are available on front panel. There is a local seven segment-based display to indicate the voltage, current and power. The front panel smart keypad is provided for load selection.

The front panel MODBUS communication port allows networking of multiple load banks to enhance power requirement as far as data center testing is concerned. The master-slave topology implementation using a Central Console as a Master and load banks as slaves works very well.

The entire solution comprises the Central Console, Load banks, Networking cables/accessories, and Junction boxes.

Key Features
